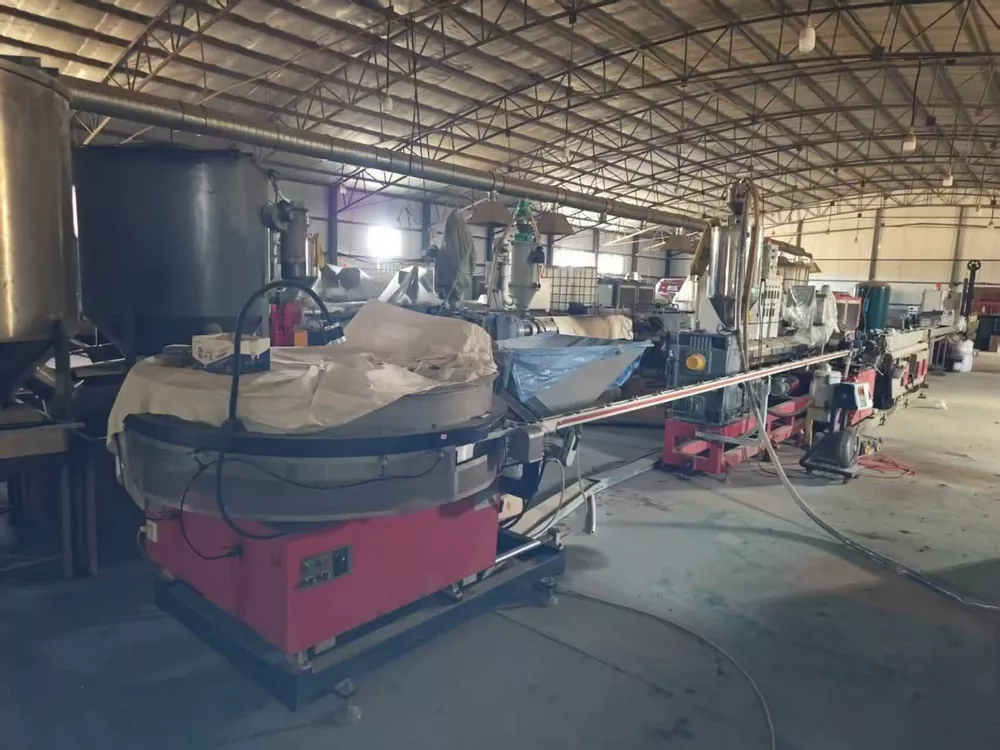

2024 HUAXU SHENGTAI HX-DS Inline Flat Drip Irrigation Tape Production Line
2024 HUAXU SHENGTAI HX-DS Inline Flat Drip Irrigation Tape Production Line
• Brand: HUAXU SHENGTAI
• Model: HX-DS
• Year: 2024
• Product: Inline Flat-Emitter Drip Irrigation Tape
• Operating Time: Approx. 3 Months
• Condition: Excellent, Ready for Production
Product Specifications:
• Tape Diameter: Ø16 mm
• Wall Thickness: 0.12–0.40 mm
• Recommended Emitter Size: 23 × 2.1 × 6 mm
• Emitter Spacing: 100 / 150 / 200 / 300 / 400 / 500 / 1,000 mm
• Production Speed: 40–360 m/min
• Speed at 300 mm Spacing: 300 m/min
• Speed at 200 mm Spacing: 300 m/min
• Speed at 100 mm Spacing: 180 m/min
• Recommended Material: PE

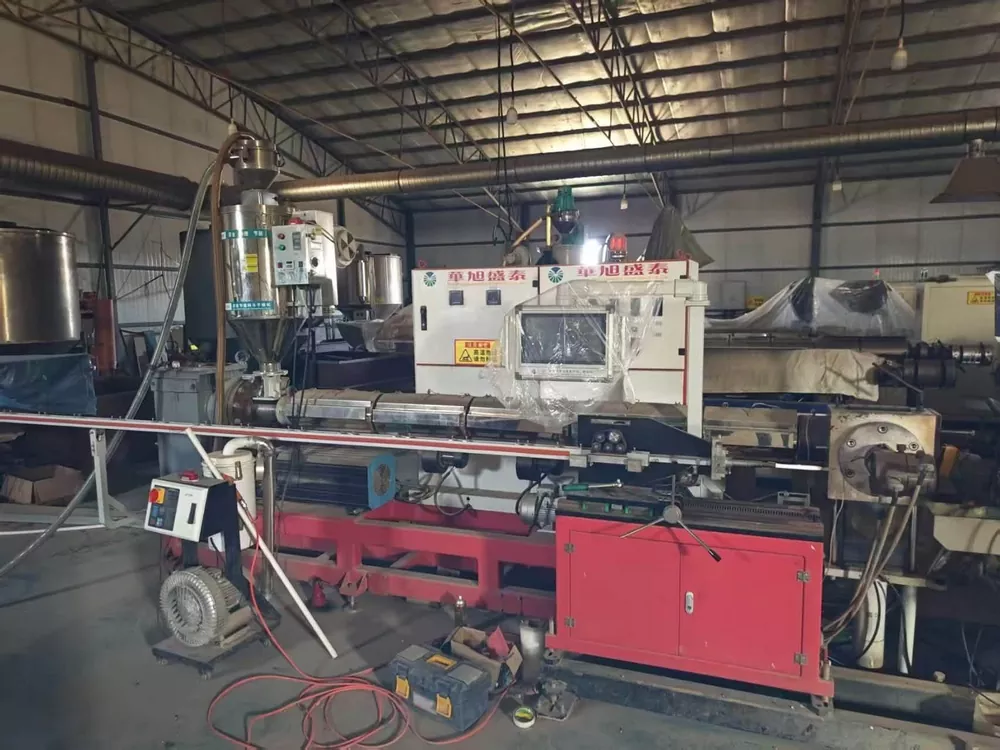

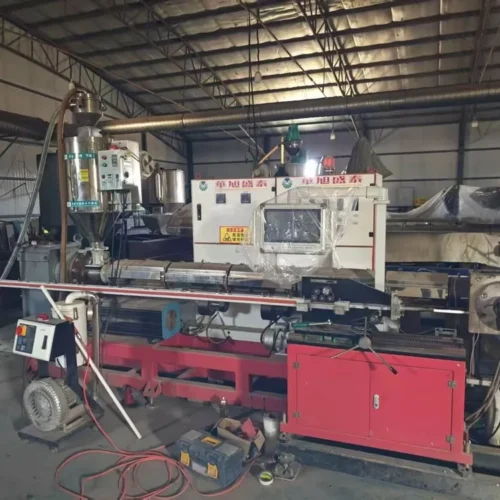

Main Extruder:
• Screw Diameter: Ø75 mm
• L/D Ratio: 42:1
• Designed for Recycled Material Processing
• Main Servo Motor: 60 kW, INOVANCE
• Cooling Fan Power: 250 W
• PLC Touchscreen Centralized Control
• Remote Monitoring Function
Main Components:

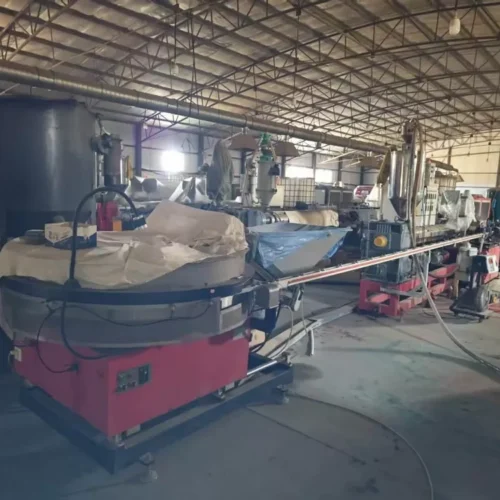

• 1280-Type Automatic Emitter Sorting System
• Pneumatic Centrifugal Sorting
• Sorting Speed: Over 2,000 Emitters/min
• 4 m or 6 m Heated Emitter Conveying Track

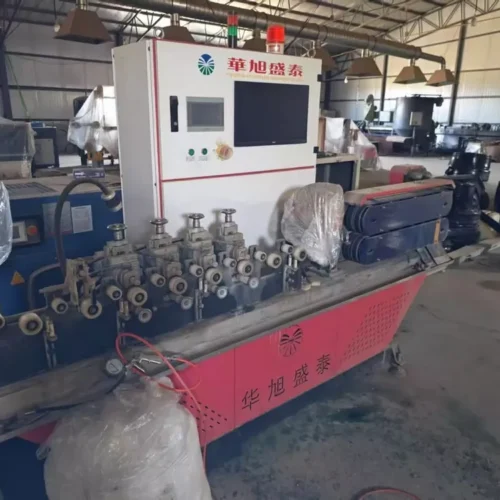

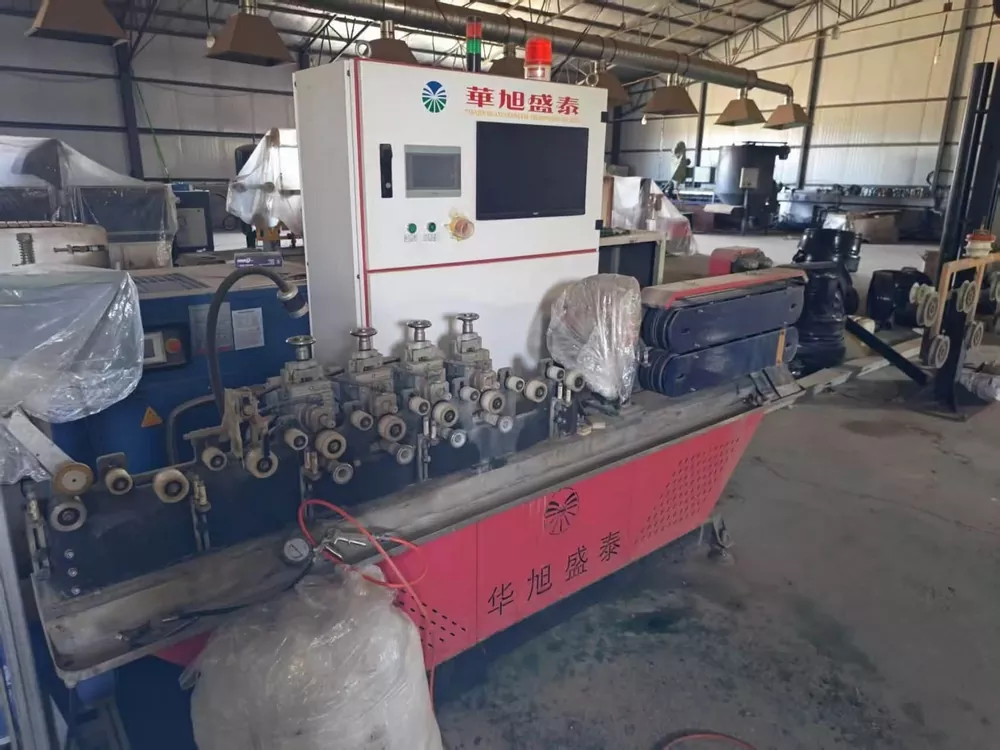

• PANASONIC Servo High-Speed Emitter Feeding System

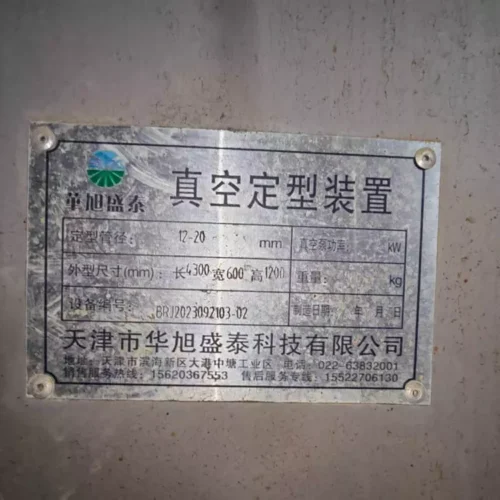

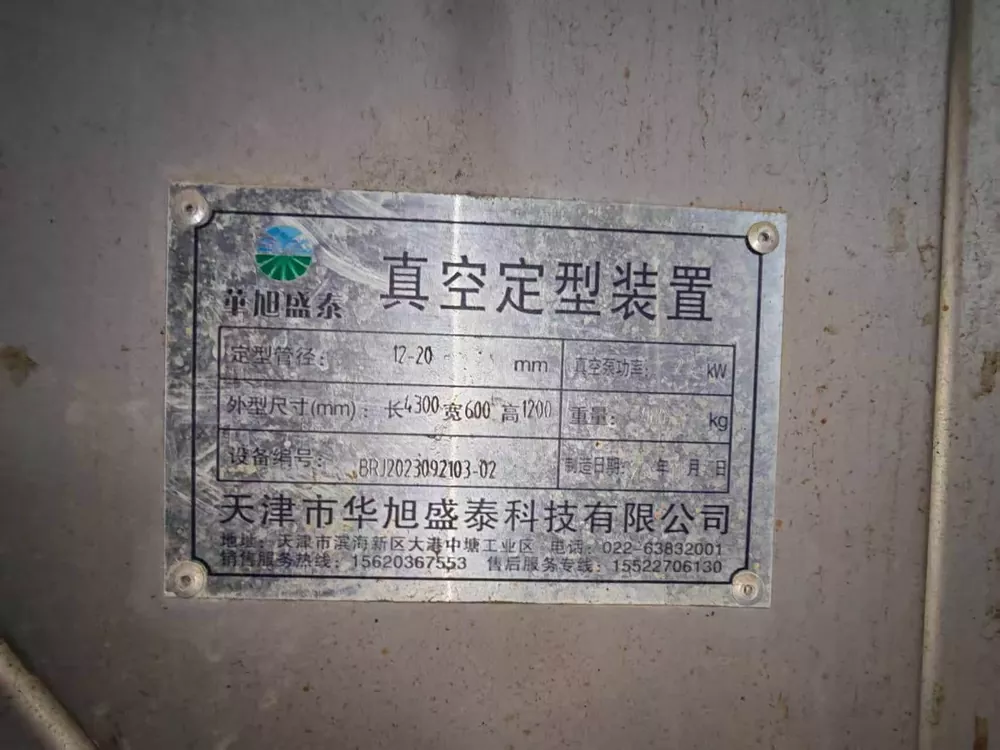

• 4 m Automatic Vacuum Calibration Unit
• Wear-Resistant Copper Calibration Sleeve
• PANASONIC 400 W Emitter-Pressing Servo

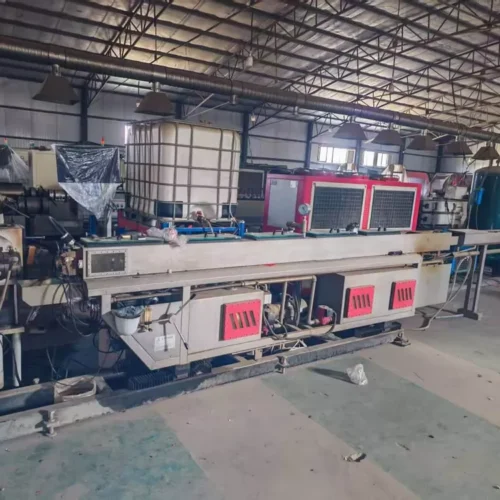

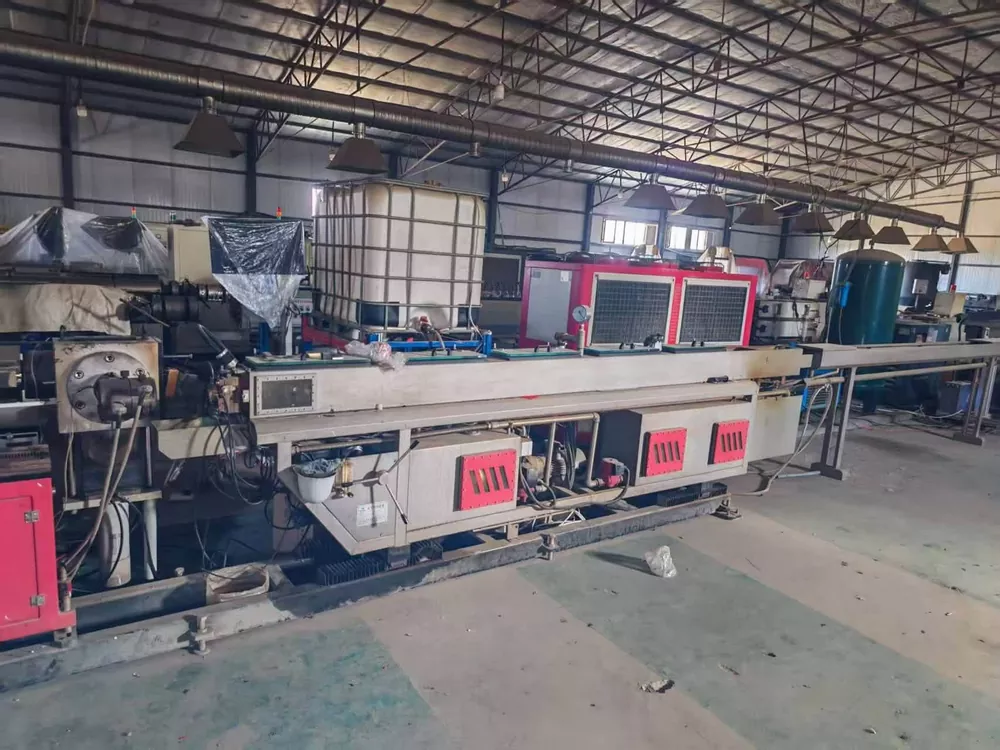

• 4 m SUS304 Secondary Cooling Tank
• Multiple Water Removal and Pipe-Break Protection
• Non-Contact Punching System
• Four-Hole Punching
• Punching Speed: Over 3,200 Holes/min
• 380-Type HD Visual Inspection System
• Automatic Image Recording and Defect Alarm

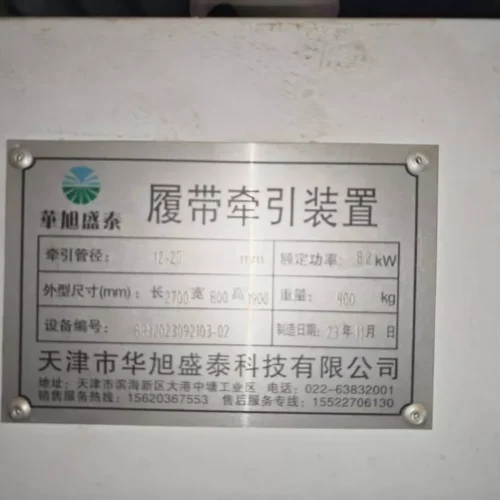

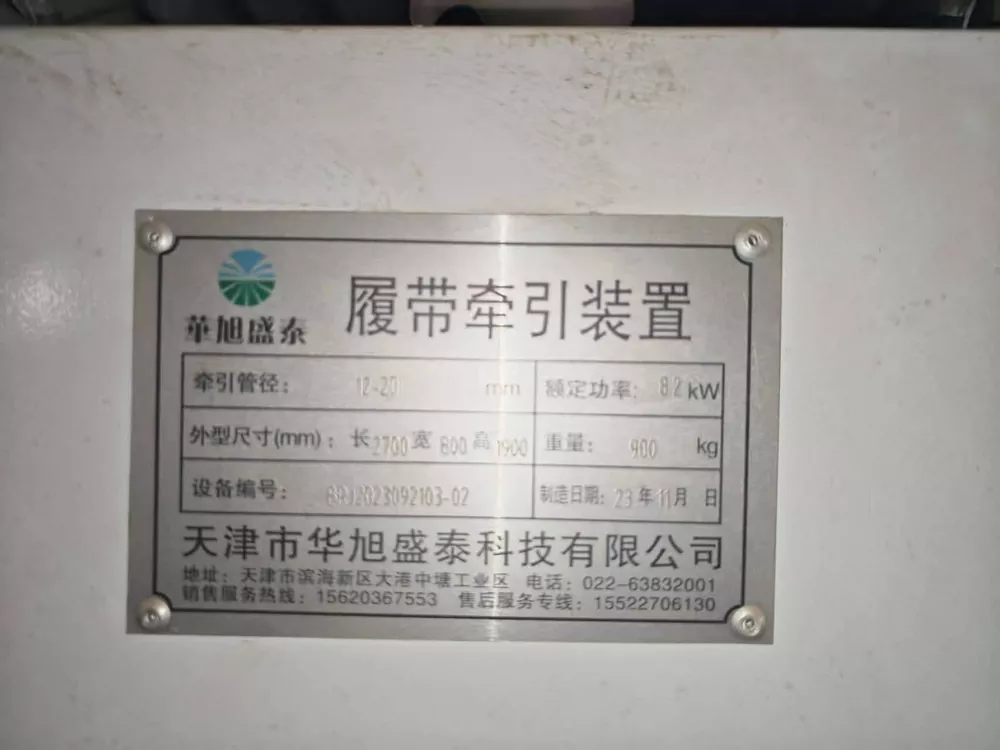

• PANASONIC 3 kW Servo Caterpillar Haul-Off
• Maximum Haul-Off Speed: Over 360 m/min

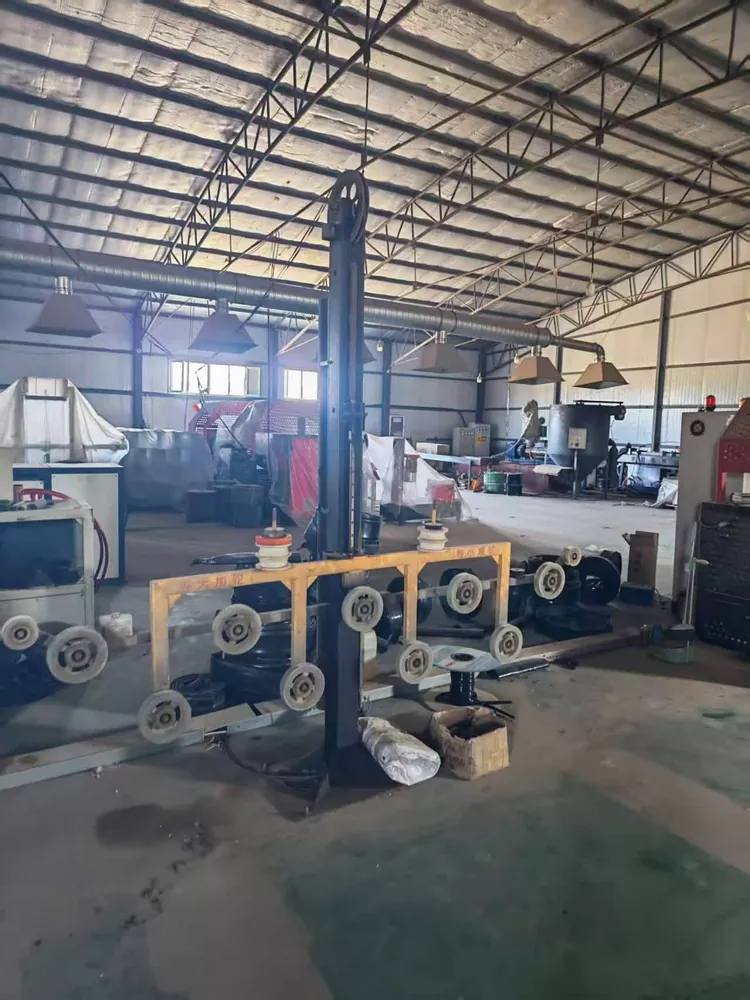

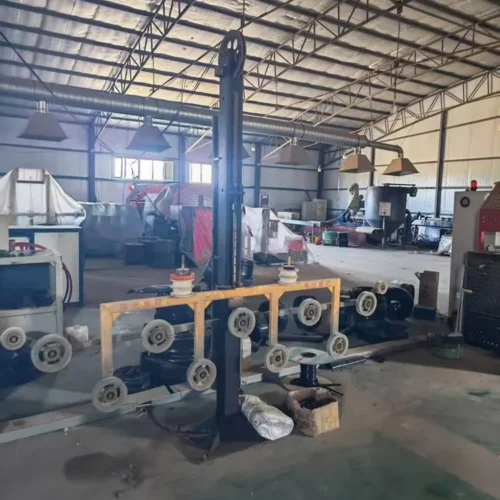

• Wheel-Type Tension Accumulator

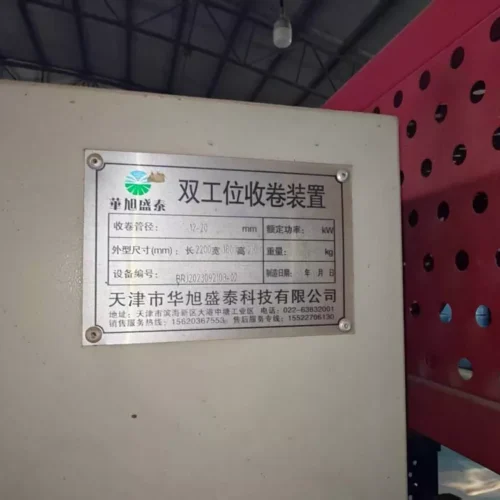

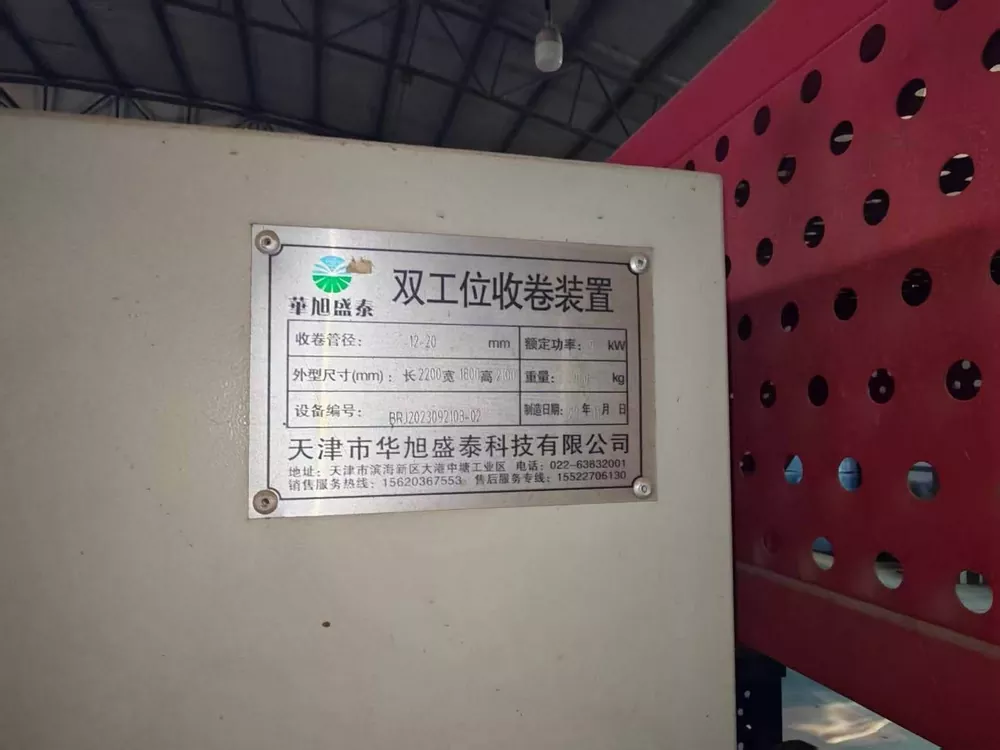

• Double-Station Automatic Winder
• Maximum Winding Speed: Over 400 m/min
• PANASONIC 3 kW Winding Servo
• PLC: PANASONIC
• Contactors: SCHNEIDER
Auxiliary Equipment:
• Vacuum Scrap Suction System
• 15 HP Industrial Water Chiller
• 1 m³ Water Storage Tank
• 1.5 kW Vacuum Loader
• 75 kg Automatic Dryer
Price: Please Contact
Location: China
2024 HUAXU SHENGTAI HX-DS Inline Flat Drip Irrigation Tape Production Line
• Brand: HUAXU SHENGTAI
• Model: HX-DS
• Year: 2024
• Product: Inline Flat-Emitter Drip Irrigation Tape
• Operating Time: Approx. 3 Months
• Condition: Excellent, Ready for Production
Product Specifications:
• Tape Diameter: Ø16 mm
• Wall Thickness: 0.12–0.40 mm
• Recommended Emitter Size: 23 × 2.1 × 6 mm
• Emitter Spacing: 100 / 150 / 200 / 300 / 400 / 500 / 1,000 mm
• Production Speed: 40–360 m/min
• Speed at 300 mm Spacing: 300 m/min
• Speed at 200 mm Spacing: 300 m/min
• Speed at 100 mm Spacing: 180 m/min
• Recommended Material: PE
Main Extruder:
• Screw Diameter: Ø75 mm
• L/D Ratio: 42:1
• Designed for Recycled Material Processing
• Main Servo Motor: 60 kW, INOVANCE
• Cooling Fan Power: 250 W
• PLC Touchscreen Centralized Control
• Remote Monitoring Function
Main Components:
• 1280-Type Automatic Emitter Sorting System
• Pneumatic Centrifugal Sorting
• Sorting Speed: Over 2,000 Emitters/min
• 4 m or 6 m Heated Emitter Conveying Track
• PANASONIC Servo High-Speed Emitter Feeding System
• 4 m Automatic Vacuum Calibration Unit
• Wear-Resistant Copper Calibration Sleeve
• PANASONIC 400 W Emitter-Pressing Servo
• 4 m SUS304 Secondary Cooling Tank
• Multiple Water Removal and Pipe-Break Protection
• Non-Contact Punching System
• Four-Hole Punching
• Punching Speed: Over 3,200 Holes/min
• 380-Type HD Visual Inspection System
• Automatic Image Recording and Defect Alarm
• PANASONIC 3 kW Servo Caterpillar Haul-Off
• Maximum Haul-Off Speed: Over 360 m/min
• Wheel-Type Tension Accumulator
• Double-Station Automatic Winder
• Maximum Winding Speed: Over 400 m/min
• PANASONIC 3 kW Winding Servo
• PLC: PANASONIC
• Contactors: SCHNEIDER
Auxiliary Equipment:
• Vacuum Scrap Suction System
• 15 HP Industrial Water Chiller
• 1 m³ Water Storage Tank
• 1.5 kW Vacuum Loader
• 75 kg Automatic Dryer
